ZR Series Large Size Roots Blower – High Volume, High Pressure, High Efficiency
Key Features of ZR Series Roots Blower
1. Advanced Impeller Design for Maximum Efficiency
The ZR blower adopts a large round-head involute impeller design, which offers higher compression efficiency and larger airflow delivery. This optimized rotor profile ensures stable, high-capacity output with reduced energy consumption, making it ideal for continuous heavy-duty operation.
2. Precision Manufacturing and Reliable Components
All key components, including the casing, walls, and rotors, are machined using CNC and machining center technology. The blower is equipped with Grade 5 precision helical gears, made of lightweight, high-strength alloy steel, ensuring quiet, smooth, and reliable operation even at high speeds and pressures.
3. Efficient Cooling without Water
The ZR series is equipped with a new oil tray structure and advanced heat dissipation design. This allows the blower to operate under pressures up to 49 kPa without the need for cooling water, reducing operation and maintenance costs significantly.
4. Horizontal Split Casing for Easy Maintenance
The housing and sidewalls feature a horizontal split structure, enabling quick and easy inspection and servicing of internal components without disassembling the entire blower—perfect for large-scale industrial sites where downtime is costly.
Technical Specifications
| Specification | Range |
| Flow Rate | 317.9 – 1258 m³/min |
| Pressure Rise | 9.8 – 98 kPa |
| Blower Type | Three-lobe rotary positive displacement blower |
| Cooling Method | Air-cooled (no water required at ≤49kPa) |
| Drive Type | Belt or coupling optional |
| Gear Type | Grade 5 precision helical gear |
| Impeller Material | High-strength cast alloy steel |
Main Applications
The ZR Series Roots Blower is engineered for heavy-duty, high-volume industrial applications where reliability and energy efficiency are key. It is widely used in:
⚡ Power Plants – for flue gas desulfurization, fluidizing beds
🏭 Steel & Metallurgy – combustion air supply and material processing
🧪 Chemical & Fertilizer Industries – nitrogen conveying, air separation, PSA systems
🧱 Cement Manufacturing – for kiln combustion, raw material transportation
🧂 Petrochemical Applications – process gas compression, oxidizing air supply
💨 Any High-Pressure, High-Volume Air Handling Scenario
Why Choose Our ZR Large Roots Blower?
🌪 Ultra-High Flow Rates: From 318 to 1258 m³/min, suitable for the most demanding airflow requirements
⚙️ Top-Tier Engineering: Advanced rotor design, precision gears, CNC-machined parts
🧊 No Cooling Water Needed: Lower operating costs, more eco-friendly
🔧 Service-Friendly Design: Horizontal split casing = easier maintenance
📦 Industrial-Grade Durability: Designed for 24/7 operation in harsh environments
🇨🇳 Reliable Chinese Manufacturer: Over 40 years of blower experience and global service

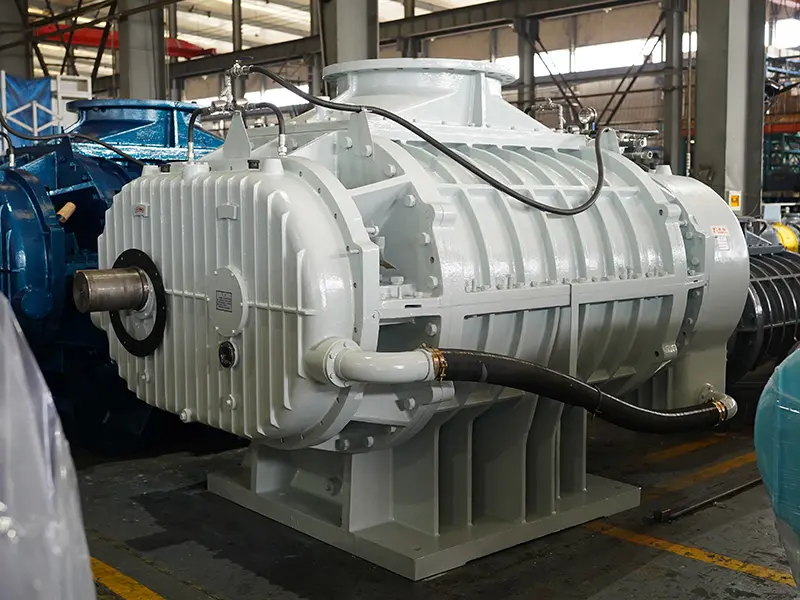

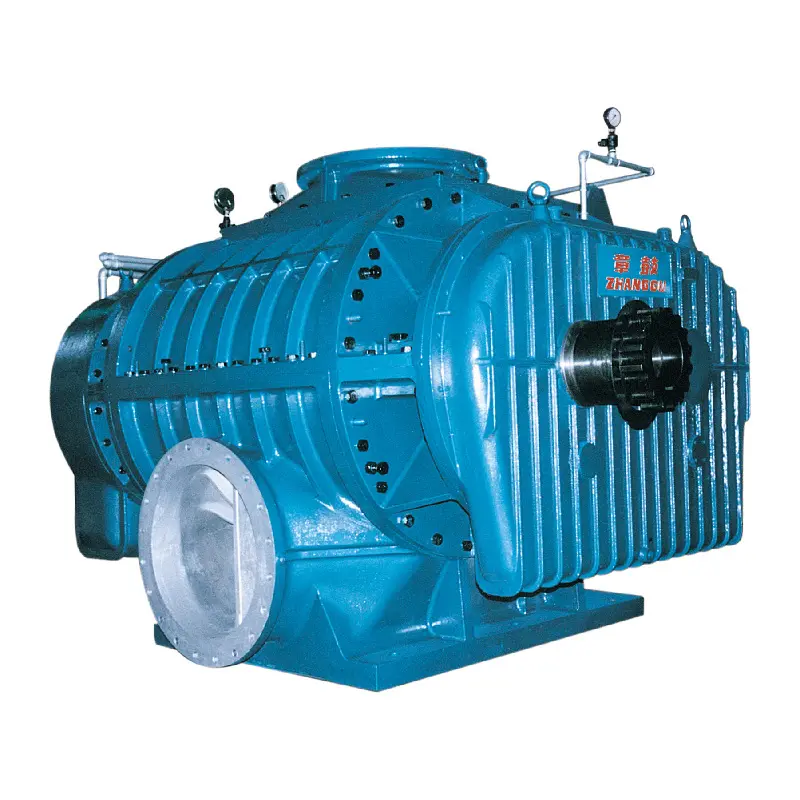

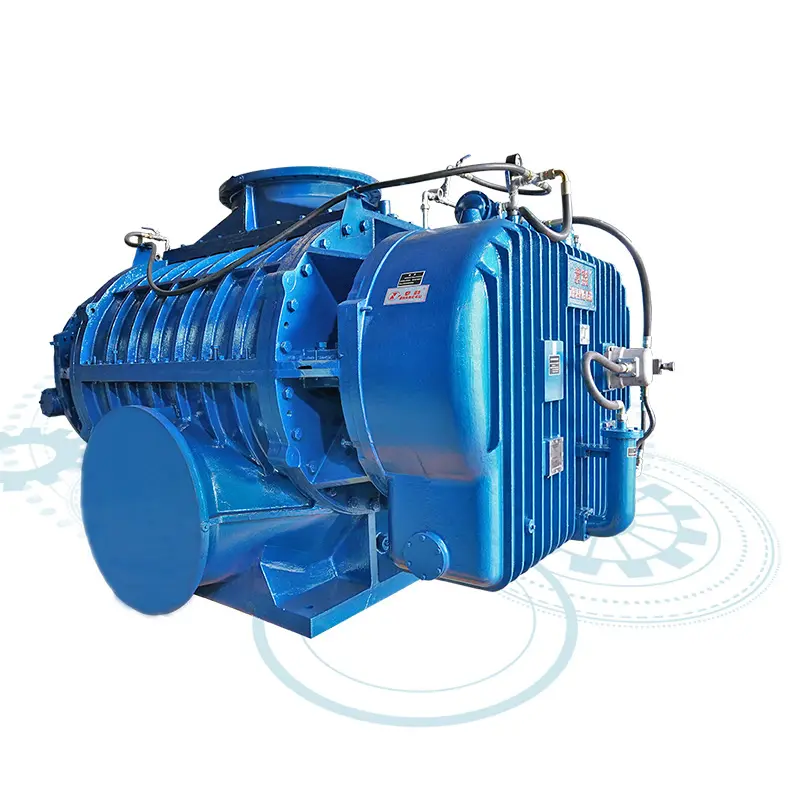

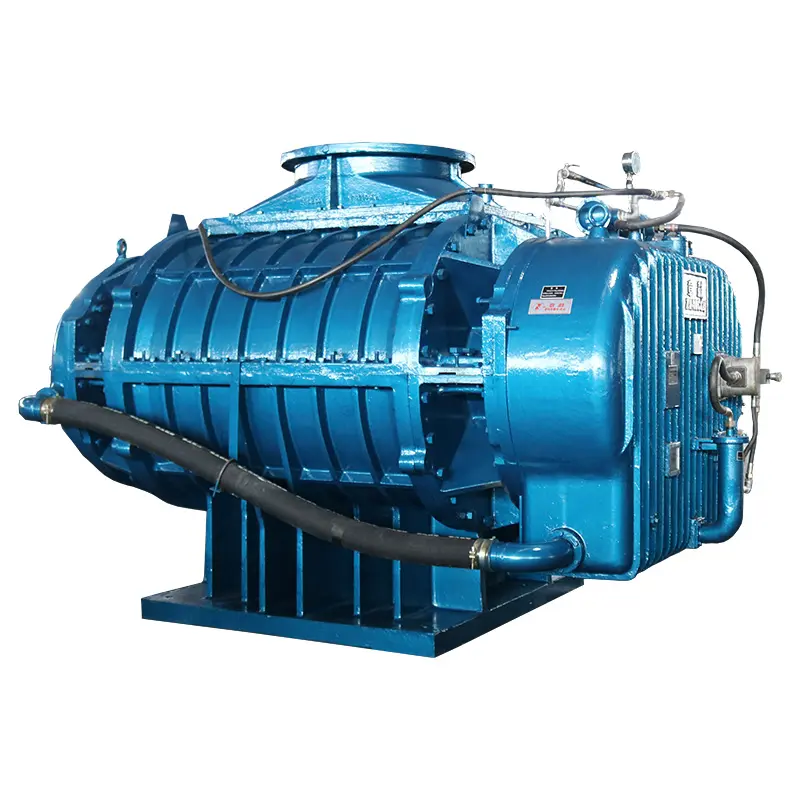

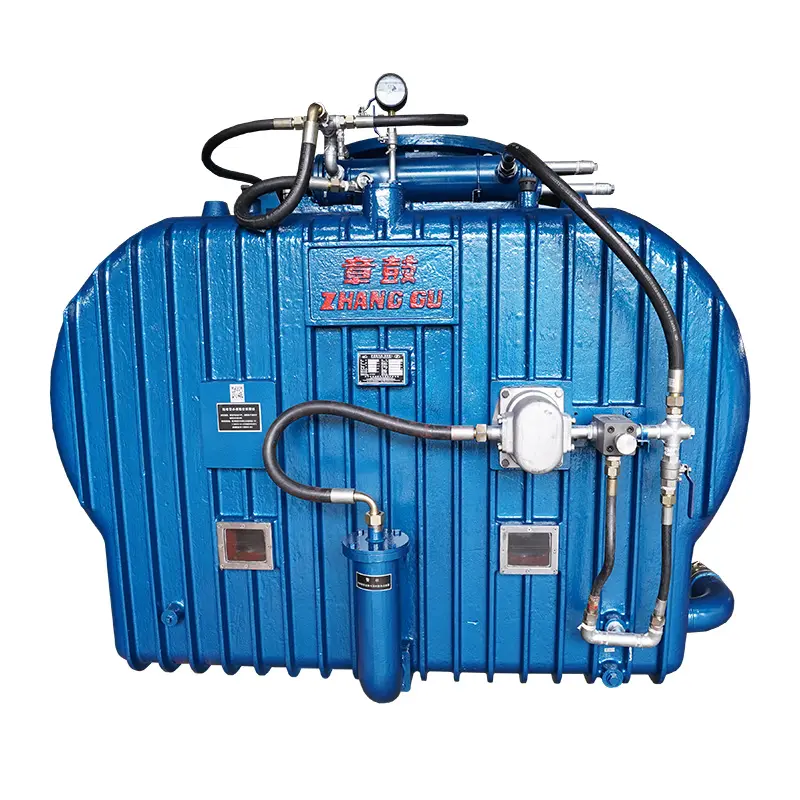

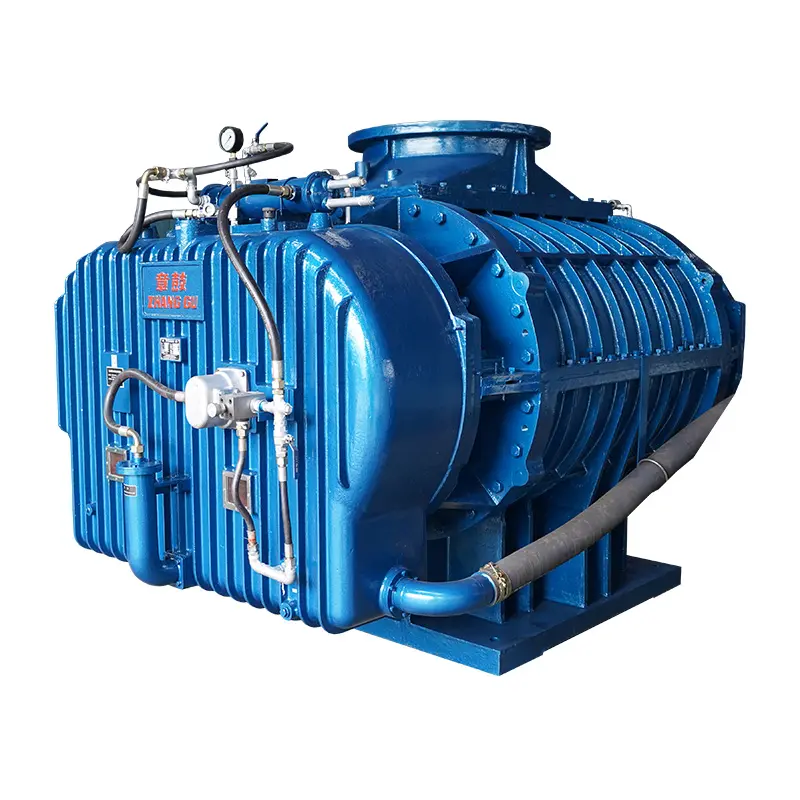

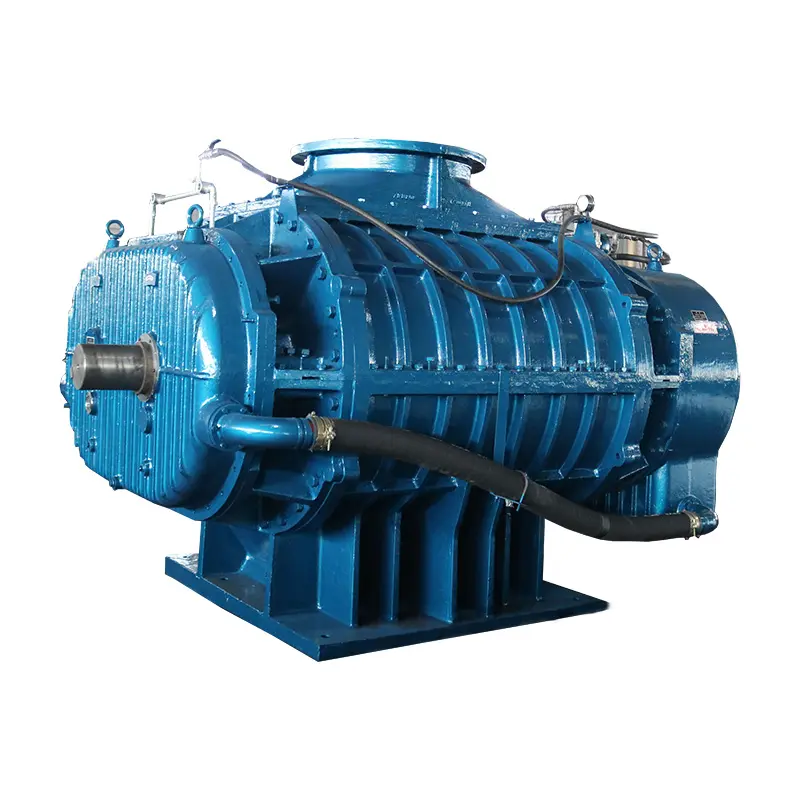

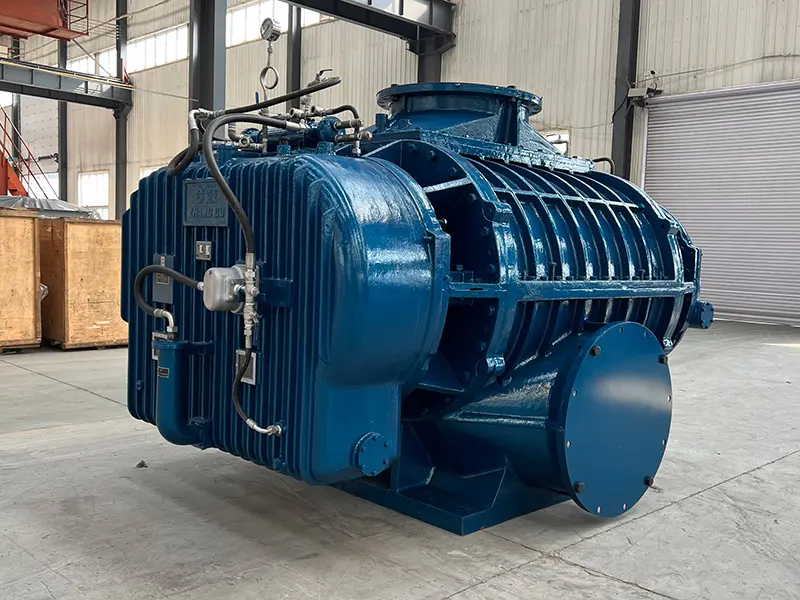

Product Display
