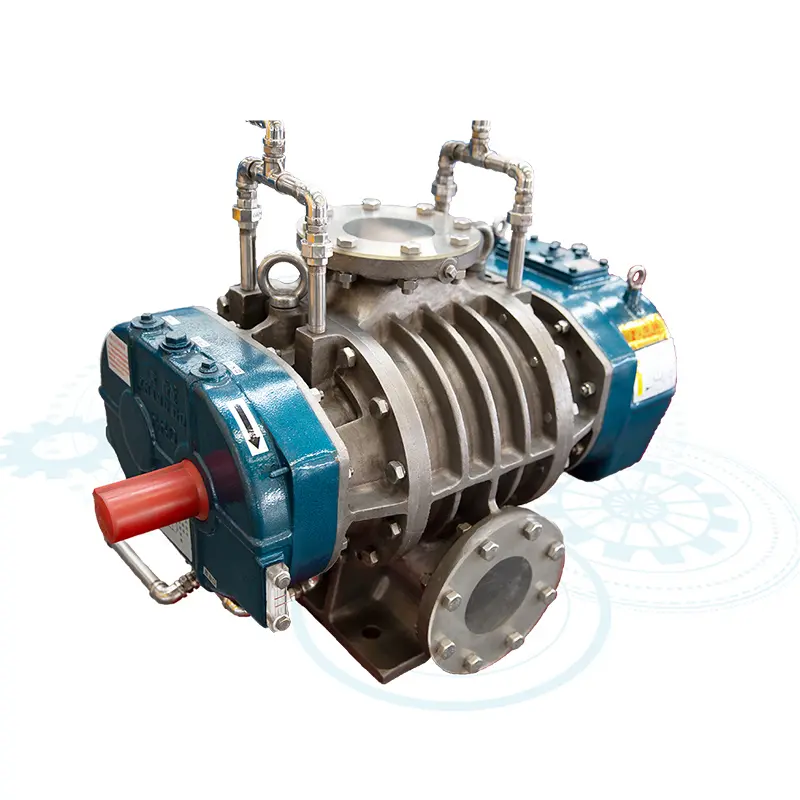

VR Series Steam Roots Compressor – High-Efficiency Roots-Type Steam Booster for Industrial Applications
Key Features of VR Series Steam Roots Compressor
1. Specially Designed for Steam Handling
Unlike standard air blowers or gas compressors, the VR Series Roots Compressor is specifically designed to transport clean saturated steam without condensation or leakage. All internal components are thermally stabilized and corrosion-resistant, ensuring long-term operation in high-humidity, high-temperature environments.
2. High Sealing Performance
Advanced shaft seal systems (mechanical seals or labyrinth + oil seal combinations) are adopted to prevent steam leakage, ensuring safe and energy-efficient operation even under fluctuating inlet pressures.
3. Superior Energy Efficiency
The Roots mechanism ensures high volumetric efficiency with minimal internal backflow. Combined with precision-machined three-lobe rotors, the VR Series achieves low energy consumption and stable discharge pressure, making it suitable for continuous-duty applications.
4. High Temperature and Pressure Resistance
Capable of handling inlet steam temperatures up to 200°C and pressures up to 98kPa (single stage), the VR Series is built for steam compression and recovery systems, often used in waste heat recovery and vapor recompression (MVR) processes.
5. Maintenance-Friendly and Robust Design
Modular construction allows for easy maintenance and part replacement
The use of oil-lubricated gears and grease-lubricated bearings ensures long bearing life
Optional water jacket available for housing cooling when required
Technical Specifications
| Parameter | Value |
| Medium | Saturated or clean steam |
| Flow Capacity | 0.6 – 60 m³/min |
| Discharge Pressure | Up to 98 kPa (single stage) |
| Steam Temperature | ≤ 200°C |
| Cooling Method | Air-cooled or water-cooled (optional) |
| Rotor Type | Three-lobe |
| Lubrication | Oil & grease |
Applications of Steam Roots Compressors
The VR Series Steam Roots Compressor is used in a wide range of steam-utilizing or vapor recovery applications, including:
MVR (Mechanical Vapor Recompression) Systems – for energy-saving evaporation
Steam Recycling Systems – for industrial heat recovery
Textile Finishing – for drying, dyeing, and setting processes
Sterilization Equipment – in food processing and pharmaceuticals
Chemical Reactors – requiring boosted steam for reaction or pressure balancing
Paper & Pulp Industry – in paper drying lines
Why Choose Our VR Series Steam Compressor?
🏆 High-temperature resistant materials and sealing solutions
🧱 Rugged industrial design with compact footprint
⚙️ Customizable configurations to match specific working conditions
🌐 Trusted by global clients in over 30 countries
📈 Optimize Your Steam System Efficiency
As steam prices rise and energy-saving becomes essential, upgrading to the VR Series Steam Roots Compressor can significantly reduce operating costs, improve heat utilization, and support your company's carbon neutrality goals.
Contact our sales and engineering team today for performance curves, installation drawings, and quotation tailored to your plant's needs.
