Vertical Slurry Pump - Reliable Submerged Solution for Abrasive Slurry Handling in Industrial Pits & Sumps
Key Features & Performance Benefits
✅ Cantilever Shaft Design — No Submerged Seals or Bearings Eliminates failure-prone components in submerged applications, significantly reducing maintenance frequency and costs.
✅ Abrasion-Resistant Materials Optional high chrome alloy or rubber lining for all wetted components ensures excellent wear resistance in tough environments.
✅ Open Impeller with Vortex or Semi-Vortex Design Allows free flow of large solids and fibers, reduces clogging and supports high concentrations of solids.
✅ Heavy-Duty Bearing Housing Above the Mounting Plate Provides reliable support for vertical shaft, isolates critical components from slurry contact.
✅ Available with Sump Depth Customization Shaft lengths can be customized (up to 3 meters or more) to suit pit depth or tank dimensions.
Technical Specifications
| Parameter | Value |
| Flow Rate | 10 – 1200 m³/h |
| Head | 5 – 60 meters |
| Max Solid Size | Up to 50 mm |
| Operating Temperature | ≤ 80°C (higher optional) |
| Material Options | Cr26 high chrome, rubber, stainless steel |
| Submerged Depth | 900 – 3000 mm (customizable) |
| Drive Mode | Belt, direct coupling, motor mount |
Application Fields
Mineral Processing
Handling tailings, concentrate overflow, thickener underflow, and cyclone feed.
Coal Washing Plants
Pumping fine coal slurry, underflow pits, or slurry tanks.
Chemical Plants
Circulation of corrosive and abrasive chemical slurry in vertical tanks.
Power Industry
Fly ash slurry pumping in bottom ash pits or sedimentation sumps.
Wastewater Treatment
Sludge pumping from clarifiers or sludge collection basins.

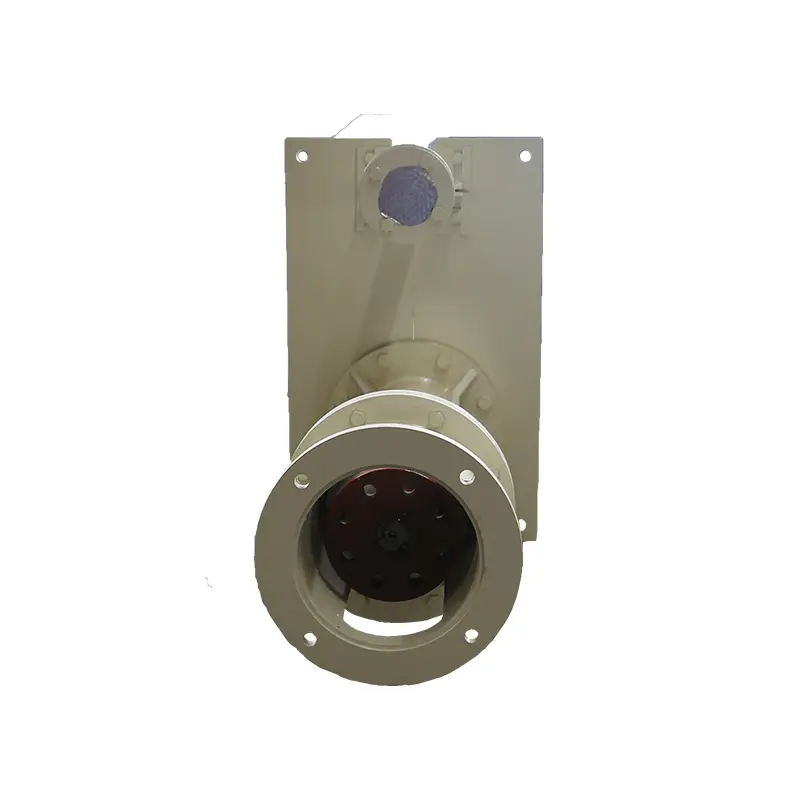

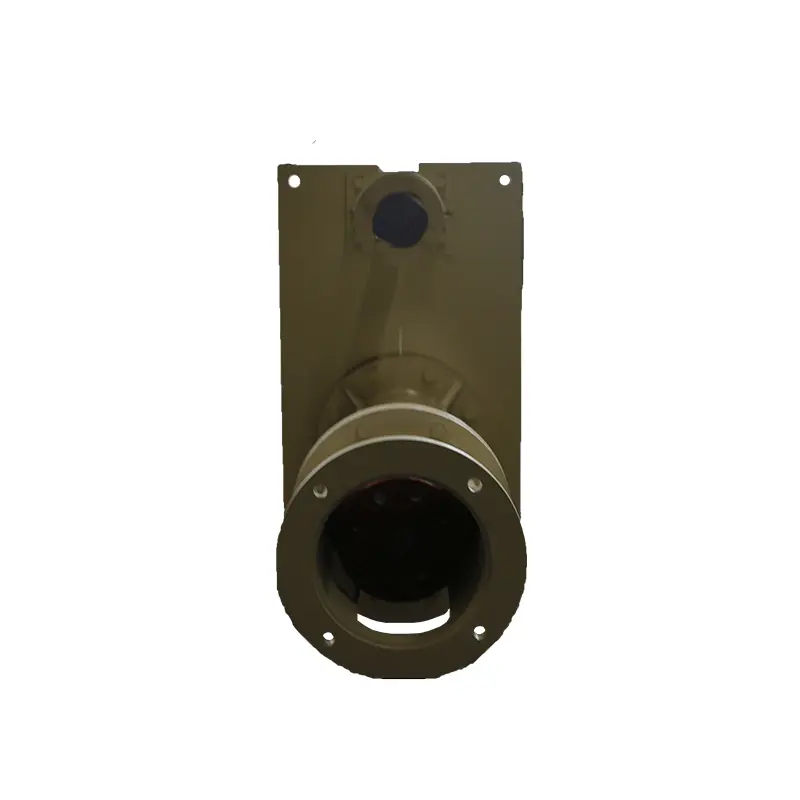

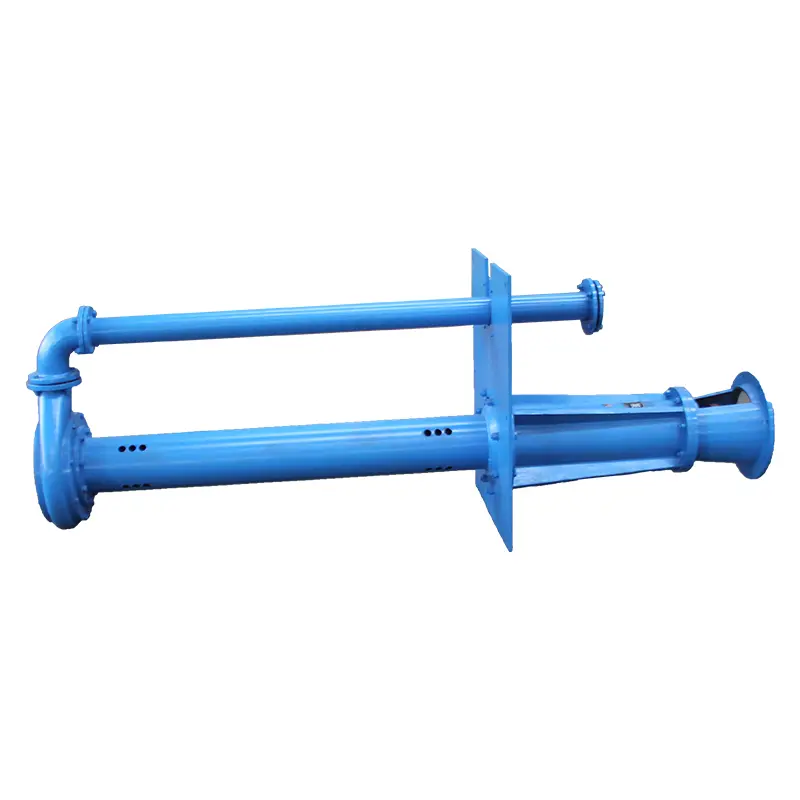

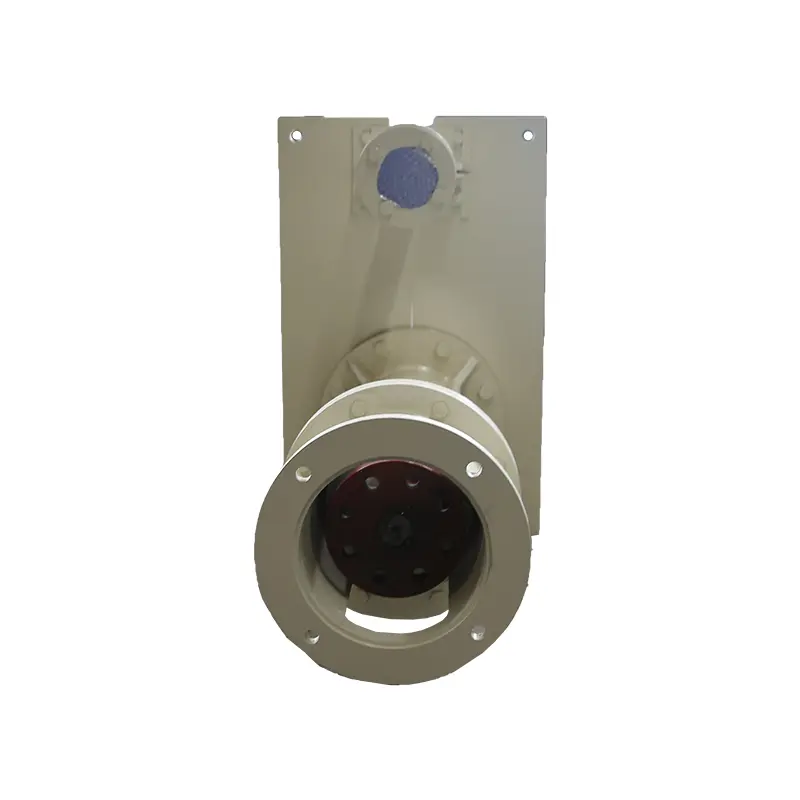

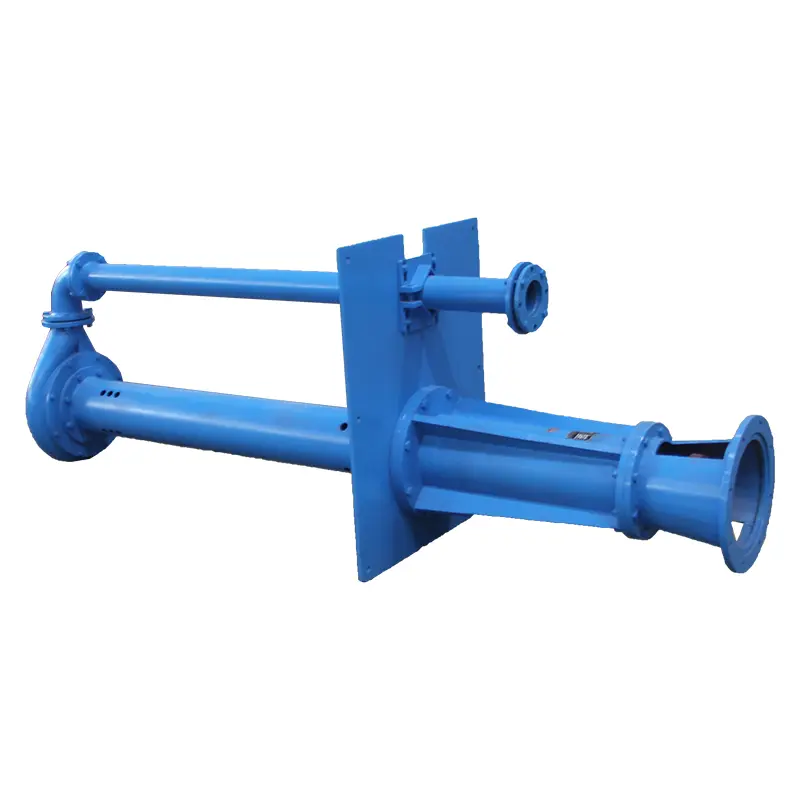

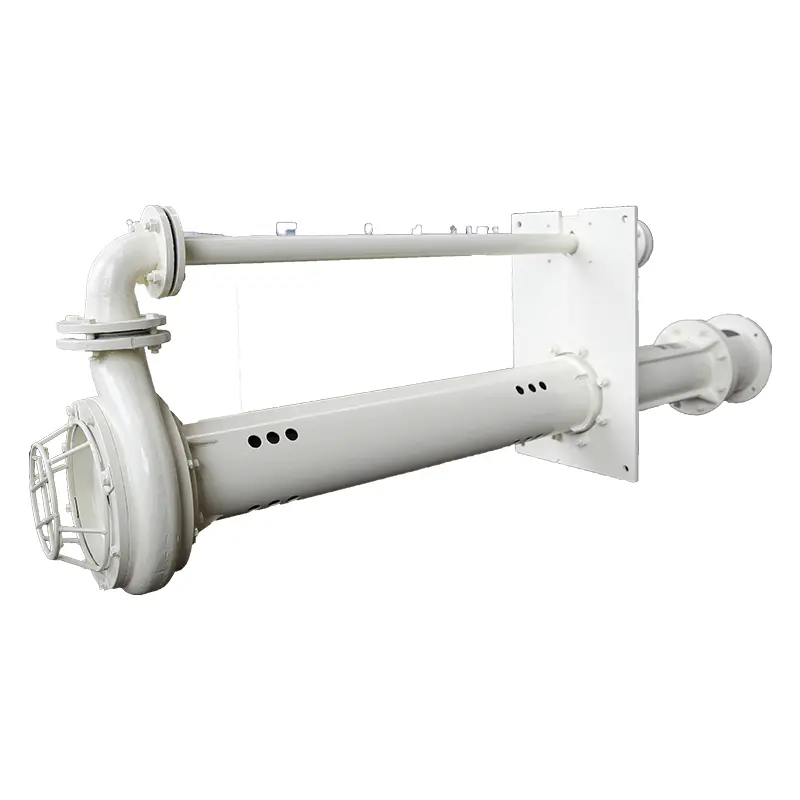

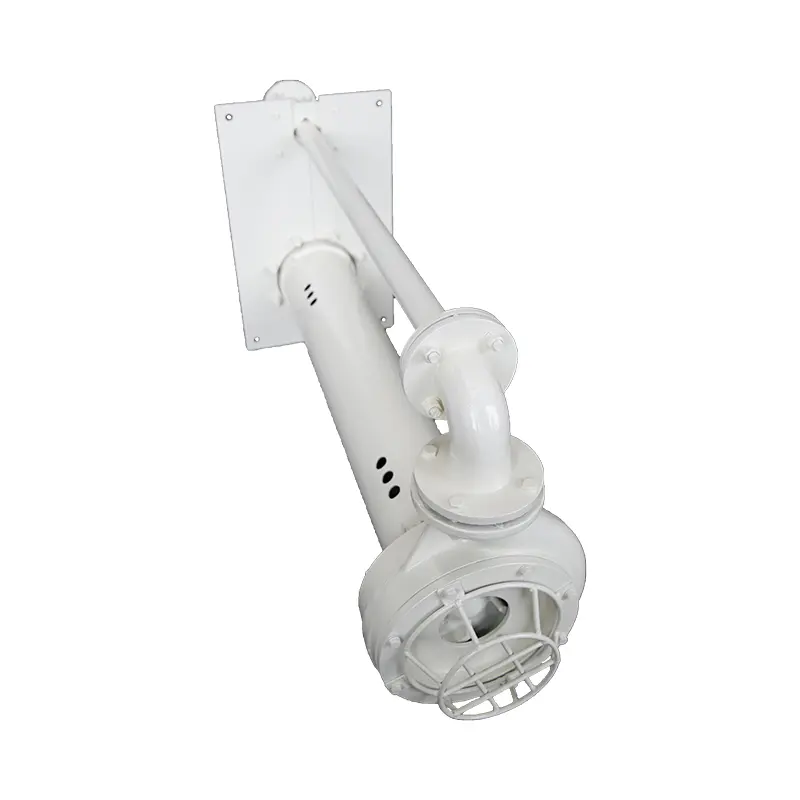

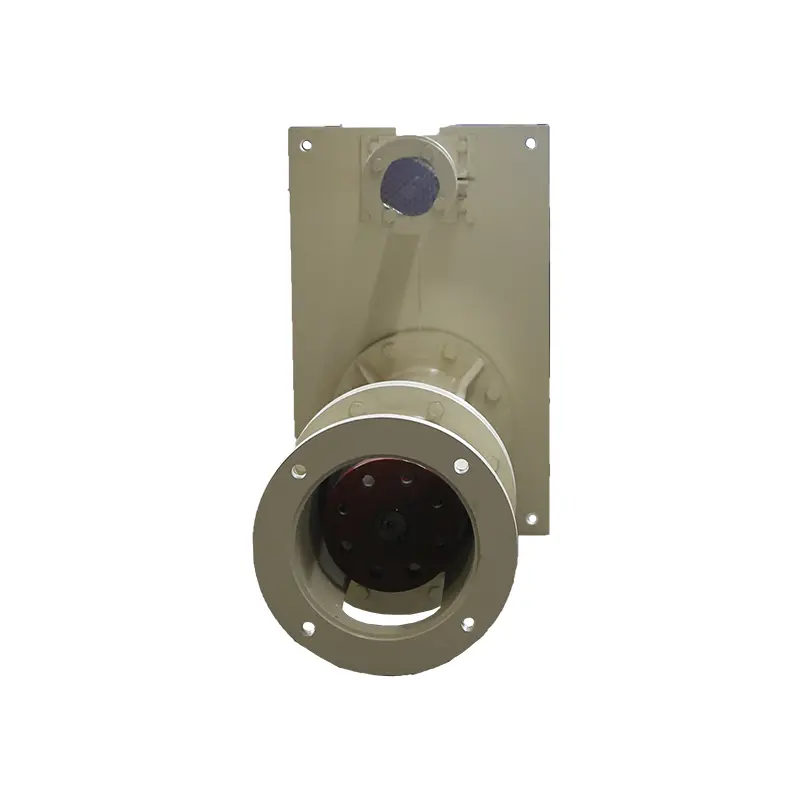

Product Display
