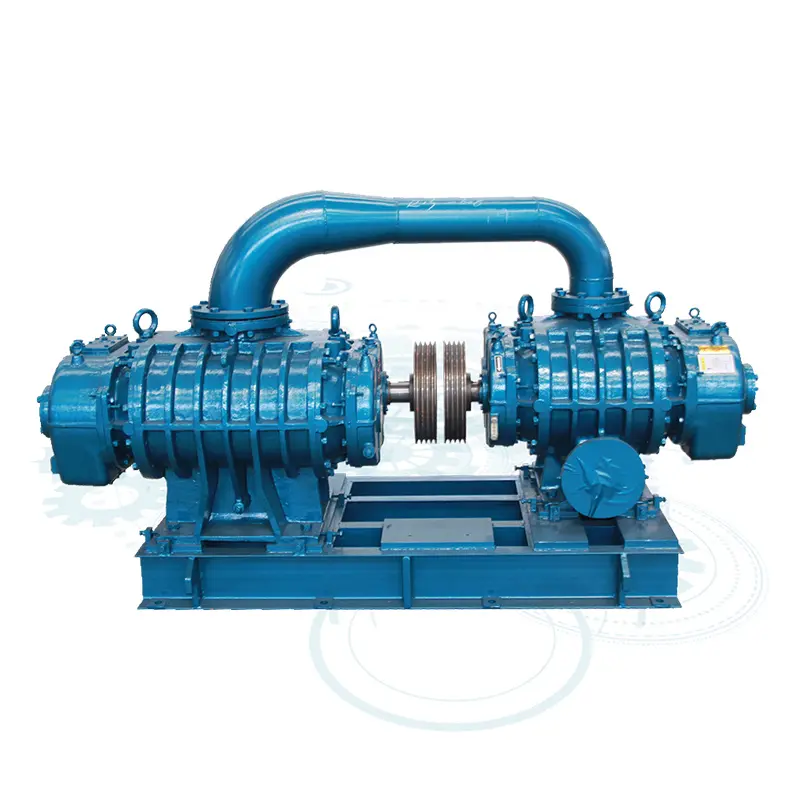

TRR Two-Stage Roots Blower – High Pressure Roots Blower with Maximum Efficiency

The TRR Series Two-Stage Roots Blower is a high-performance industrial blower system designed specifically for applications requiring higher pressure differentials that cannot be achieved by single-stage blowers. This series includes both two-stage series-connected Roots blowers and two-stage series-connected wet Roots vacuum pumps, offering a wide range of flow capacities and pressures to suit demanding industrial processes.

Why Choose a Two-Stage Roots Blower?

For Roots blowers and vacuum pumps, the pressure ratio in a single stage is generally limited to 2.2 due to concerns about efficiency and temperature rise. When a higher pressure ratio is needed, the TRR series offers the perfect solution. By connecting two blowers (or vacuum pumps) in series, the system can safely and efficiently deliver higher pressure outputs while maintaining reliable performance. To ensure stable operation, a mid-stage intercooler is integrated between the two stages, effectively reducing temperature rise and protecting internal components.

product details

Key Features of TRR Two-Stage Roots Blower

High Pressure Capability
Delivers pressure up to 196kPa, making it ideal for heavy-duty applications in industries such as petrochemicals, metallurgy, cement, and wastewater treatment.

Wide Flow Range
Blower flow capacity: 0.63 to 1258 m³/min
Vacuum pump capacity: 1.21 to 1250 m³/min

Dual Configuration
Offers both Roots blower and wet Roots vacuum pump configurations for versatile usage in both overpressure and vacuum applications.

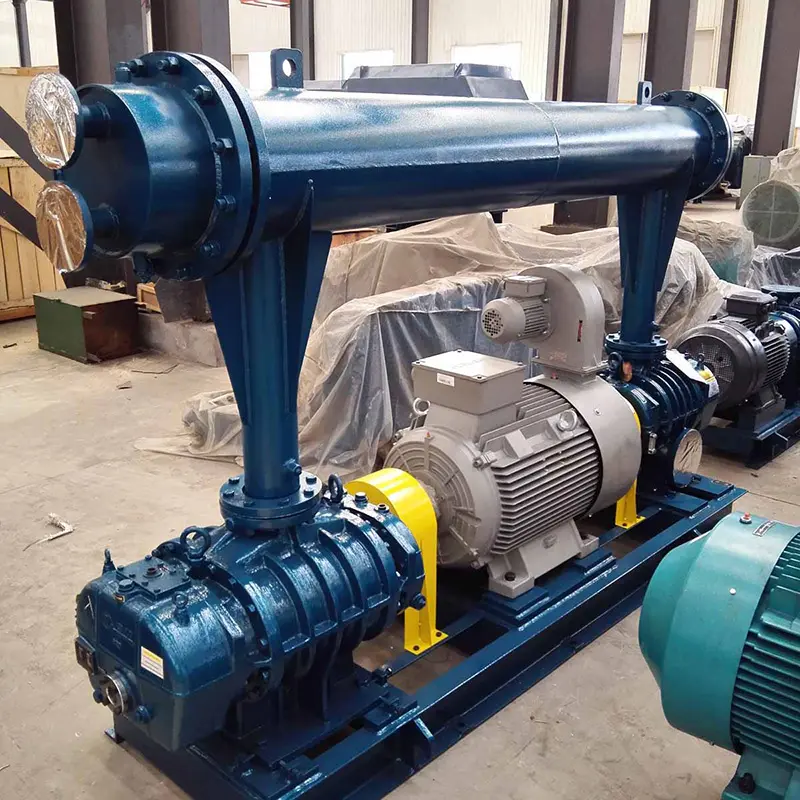

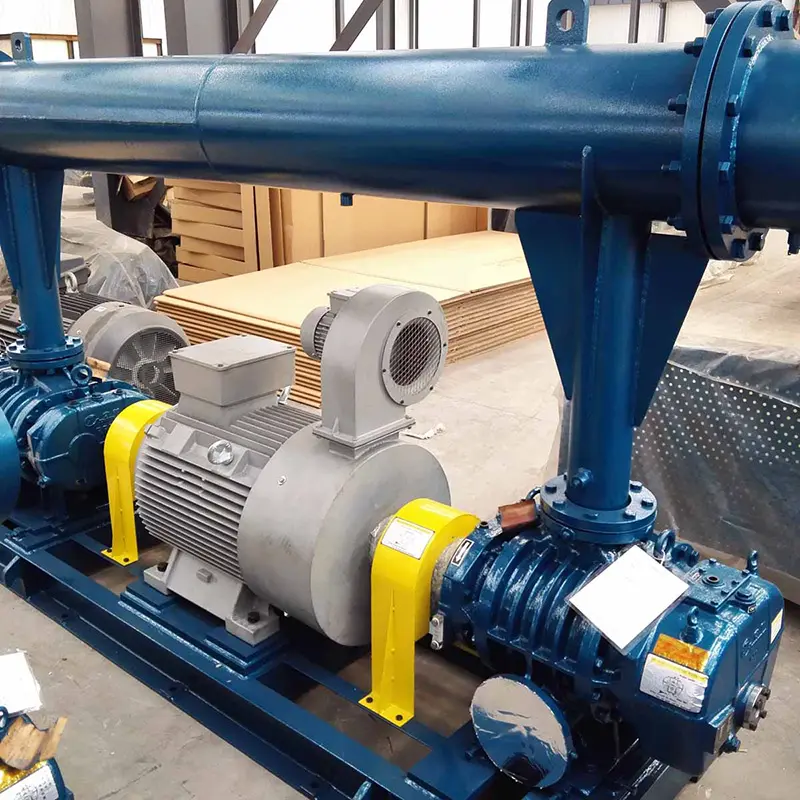

Intermediate Cooling System
Integrated intercooler between stages minimizes the temperature increase, extending the lifespan of the equipment and improving overall system efficiency.

Reliable and Robust Construction
Manufactured with precision engineering and premium components to withstand long-term operation in harsh industrial environments.

Applications

The TRR series is engineered for operations requiring high pressure, large volume air delivery, or deep vacuum conditions, including:

Steel manufacturing and blast furnace support

High-pressure pneumatic conveying

Petrochemical processing

Cement production and conveying

Industrial vacuum systems

Specialized gas recovery and environmental protection systems

Technical Specifications

Model	Flow Range	Pressure / Vacuum
Two-Stage Roots Blower	0.63 – 1258 m³/min	98 – 196 kPa
Two-Stage Wet Roots Vacuum Pump	1.21 – 1250 m³/min	-53.3 – -80 kPa

Optimize Your Process with TRR Series

The TRR Series Two-Stage Roots Blower is your best choice for ultra-reliable, high-efficiency gas handling in demanding environments. Whether you're dealing with air, steam, or specific gases, this unit ensures stable, oil-free air flow, minimal maintenance, and superior energy performance.
