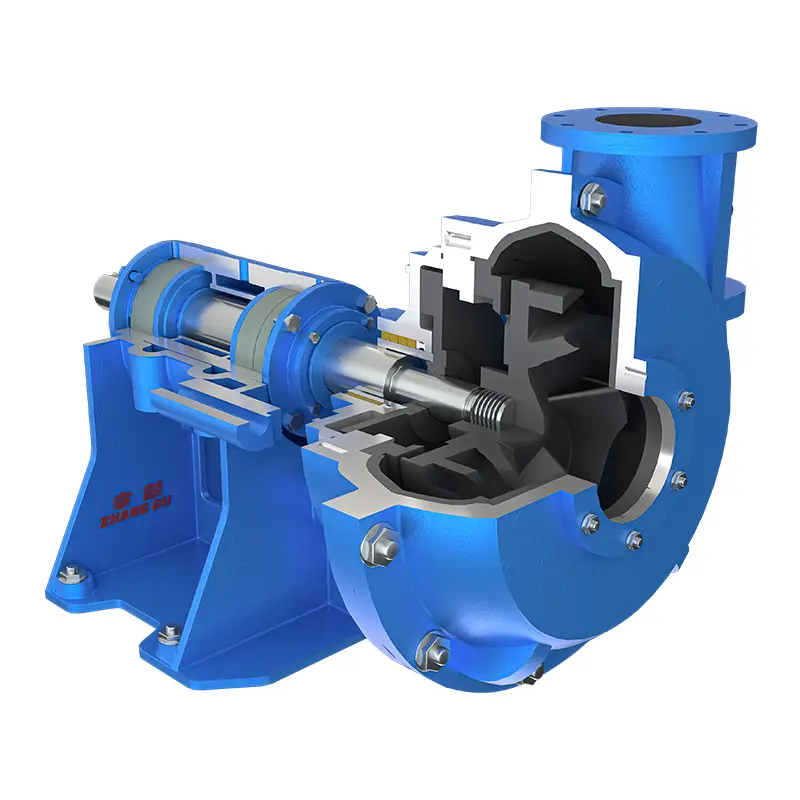

Foam Slurry Pump - Optimized for Frothy Slurry Handling in Flotation and Mineral Processing Applications
Key Features & Technical Advantages
Anti-Foam Hopper Design
Integrated large-volume hopper allows the foam to break naturally before entering the pump casing, improving feeding consistency.
Vertical Cantilever Structure
No submerged bearings or seals, ideal for handling corrosive and abrasive slurries without excessive wear.
Open or Semi-Open Impeller
Designed to handle high air content and large particle sizes without clogging or cavitation.
Heavy-Duty Construction
All wetted parts are available in high chrome alloy or natural rubber for excellent abrasion resistance.
Reliable Shaft Support System
Shaft and bearings are supported above the mounting base, extending lifespan in frothy, corrosive environments.
Technical Specifications
| Parameter | Value |
| Flow Rate | 7 – 650 m³/h |
| Head | 5 – 40 meters |
| Foam Slurry Density | Up to 1.3 g/cm³ |
| Submerged Depth | 800 – 2500 mm (customizable) |
| Material Options | Cr26 high chrome, natural rubber |
| Motor Power | 5.5 – 75 kW |
| Drive Type | Direct drive, V-belt |
Application Industries
Mineral Flotation Plants
Transfer of froth concentrate or scavenger froth slurry.
Non-Ferrous Metal Processing
Handling foamy copper, zinc, lead flotation output.
Paper & Pulp Industry
Deinking process and foam slurry handling.
Chemical and Phosphor Plants
For phosphoric acid production involving foam separation.
